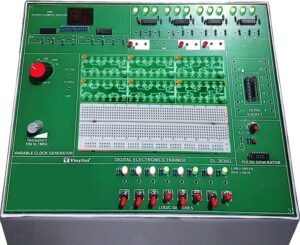

Digital Electronics Trainer
Model No.: DL-DTKP-Gates

 * Input Power Supply 230V AC, 50Hz (±10%), with built-in regulated DC power supply

 * ⁠ ⁠Output DC Power Supply +5V DC (fixed, 1A), +12V DC (optional), –12V DC (optional)

 * ⁠ ⁠Breadboard Area High-quality solder less breadboard (800 tie points)

 *  Digital Gates Ic with Output/Input on 2mm sockets : 7400 – 2 , 7402 – 01 , 7404 – 01  , 7408 – 01  and 7432 – 01

 * ⁠Logic Switches 8–16 independent toggle switches for binary inputs

 * Variable clock generator

 * Extra 14- pin socket for IC. with pinout on 2mm sockets

  *⁠ ⁠Logic Indicators 8–16 LED indicators with current-limiting resistors

 *⁠ ⁠Clock Generator Variable frequency clock (1 Hz to 1 MHz), manual and auto modes Pulse Generator Single-step push button for manual pulse generation

 *⁠ ⁠Seven-Segment Display 2–4 common anode/cathode displays with BCD driver IC (e.g., 7447/4511)

 *⁠ ⁠IC Trainer Support IC base sockets with Vcc and GND connection

 *⁠ ⁠Test Points Multiple test points for CRO/DMM monitoring

 *  ⁠Protection Short circuit and fuse/auto-reset protection
